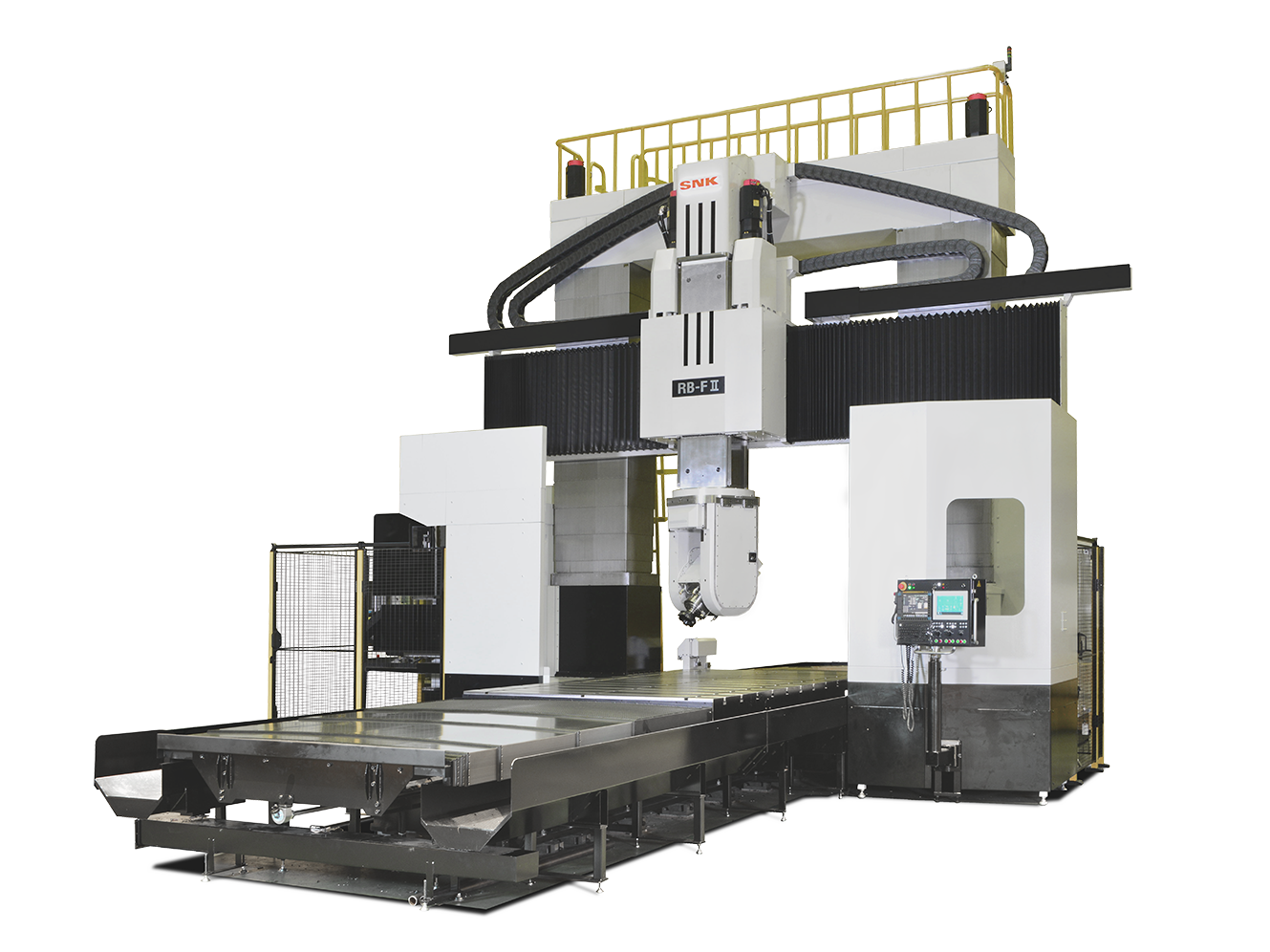

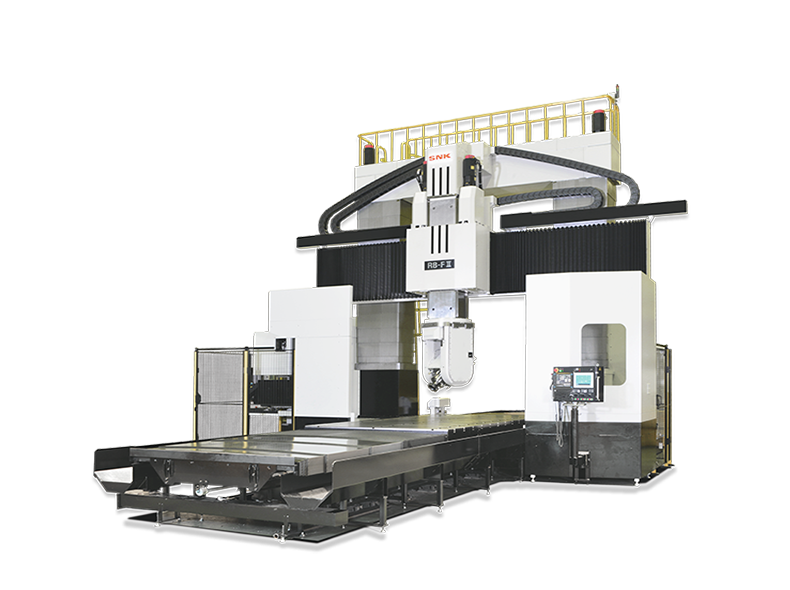

RB-FⅡDouble column type 5-axis machining center
- Automotive
- Aerospace
- General machining
- Shipbuilding
- Heavy electric
- Material
- Semiconductor
- Specialized machines
A highly rigid continuous 5-axis machining center than can perform powerful 5-axis machining.

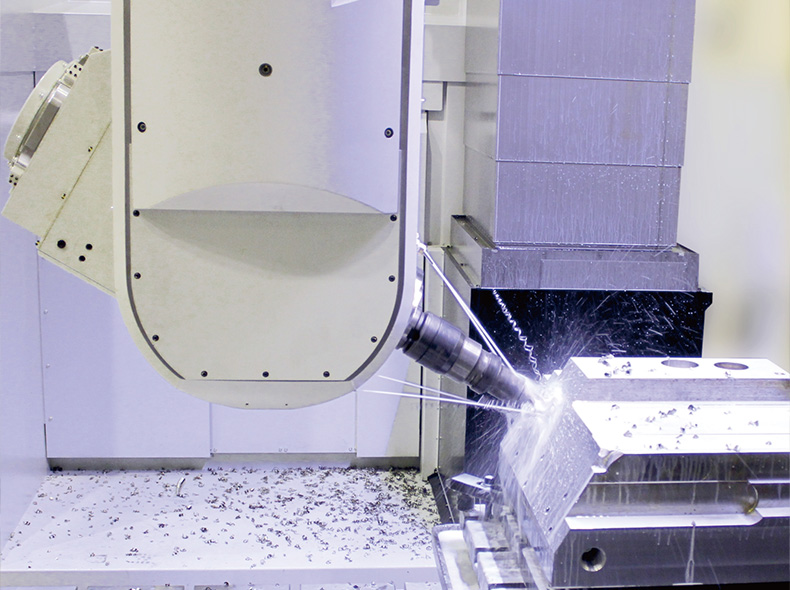

The unique structure of the spindle head challenges all standards of continuous 5-axis machining. RB-FⅡ is capable of ripping through iron and hard-to-cut materials. Depending on the needs of the customer, SNK also offers spindle types that allow high emission machining for aluminum workpieces. SNK has invested time polishing its user-friendliness, and SNK strongly believes that this machining highly improves production of customers that perform 5-face machining.

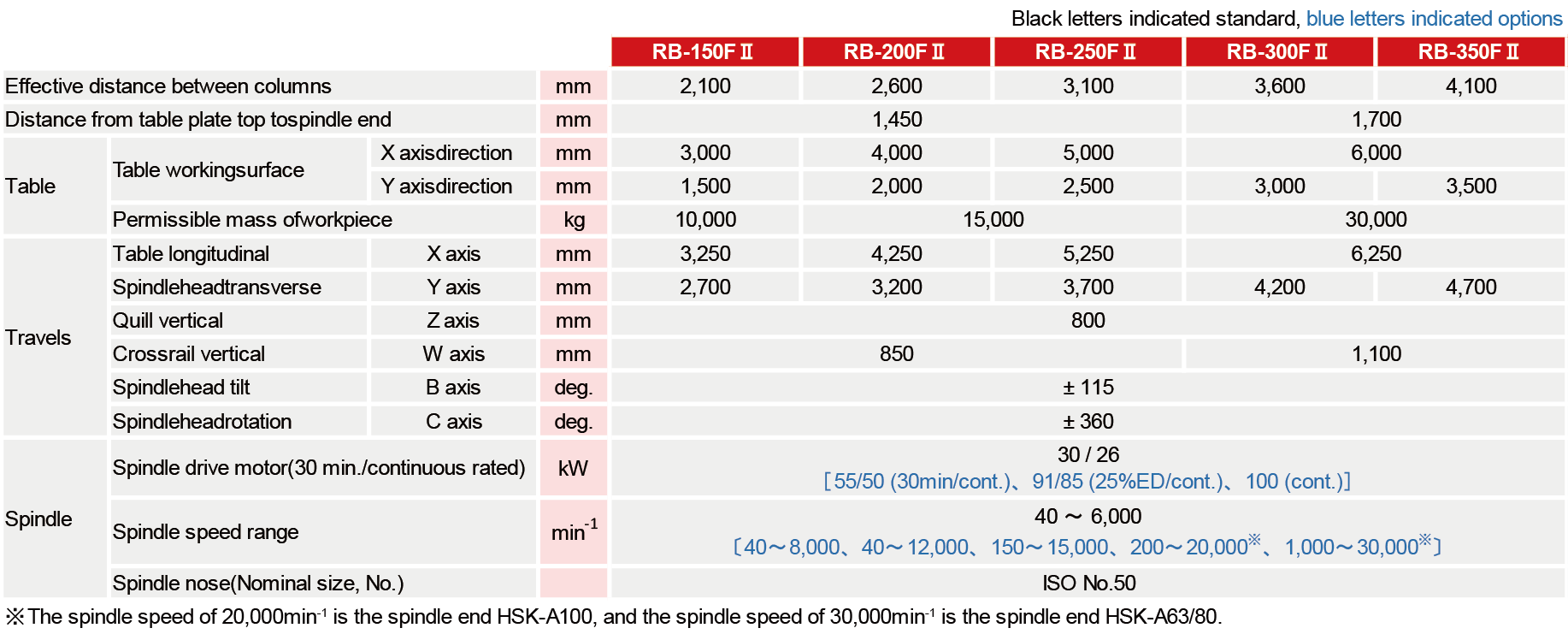

Main specifications
Features

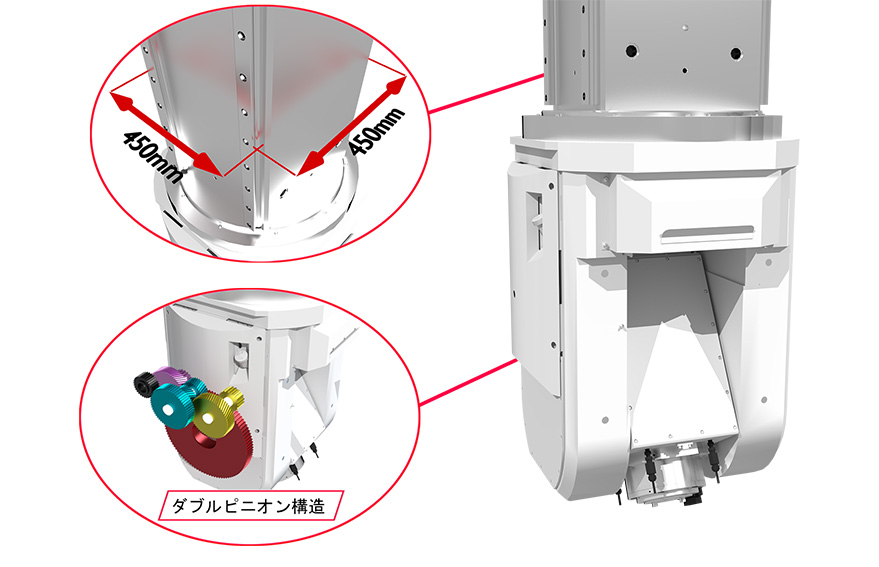

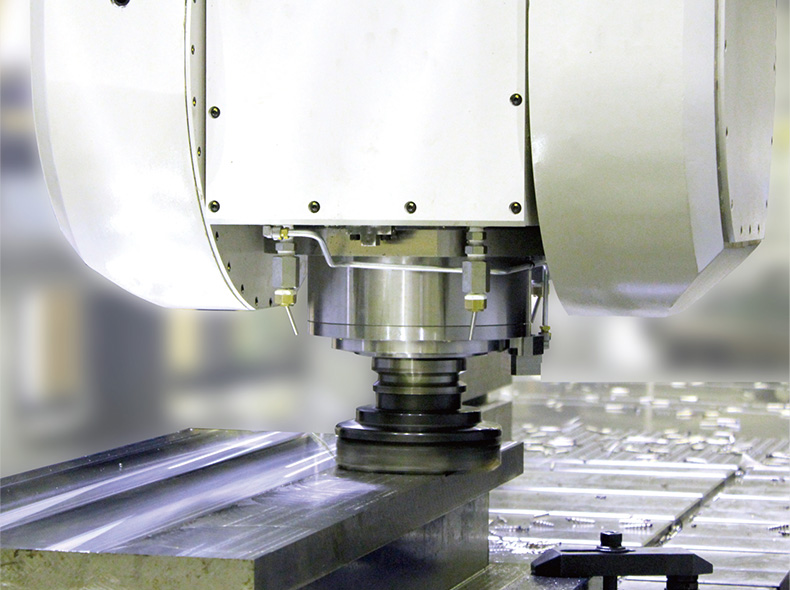

1An overwhelmingly strong continuous 5-axis head to be proud of.
The double-pinion mechanism and multi-stage gear device system for both swivel axes (B/C-axes) has been integrated, allowing for a maximum rotation torque of 6,600N・m on the continuous 5-axis head. Combining it with the 450mm square ram that carries this heavy head, heavy-load iron or hard-to-cut machining is possible.

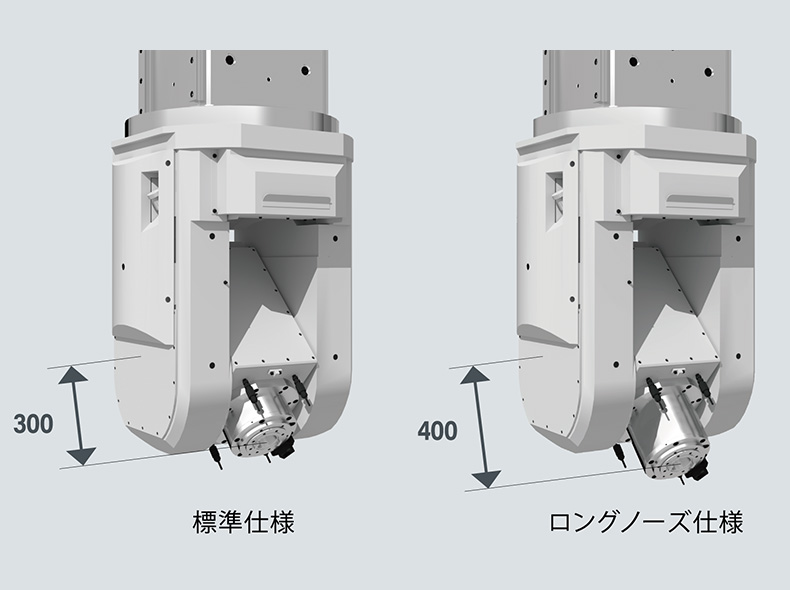

2A wide spindle selection for diverse machining needs.
From slow spindle speed for general machining to high speed for aluminum machining, SNK is capable to correspond to every industry offering 6 different types of spindles heads for RB-FⅡ

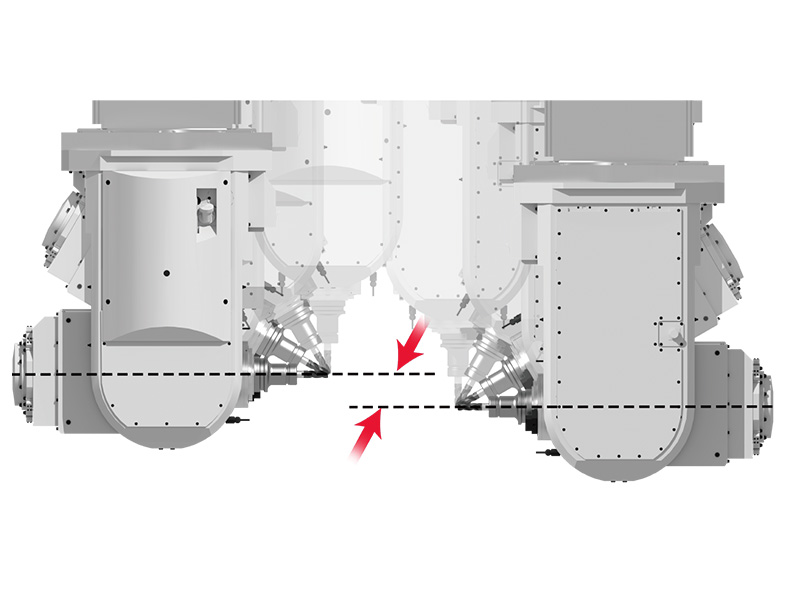

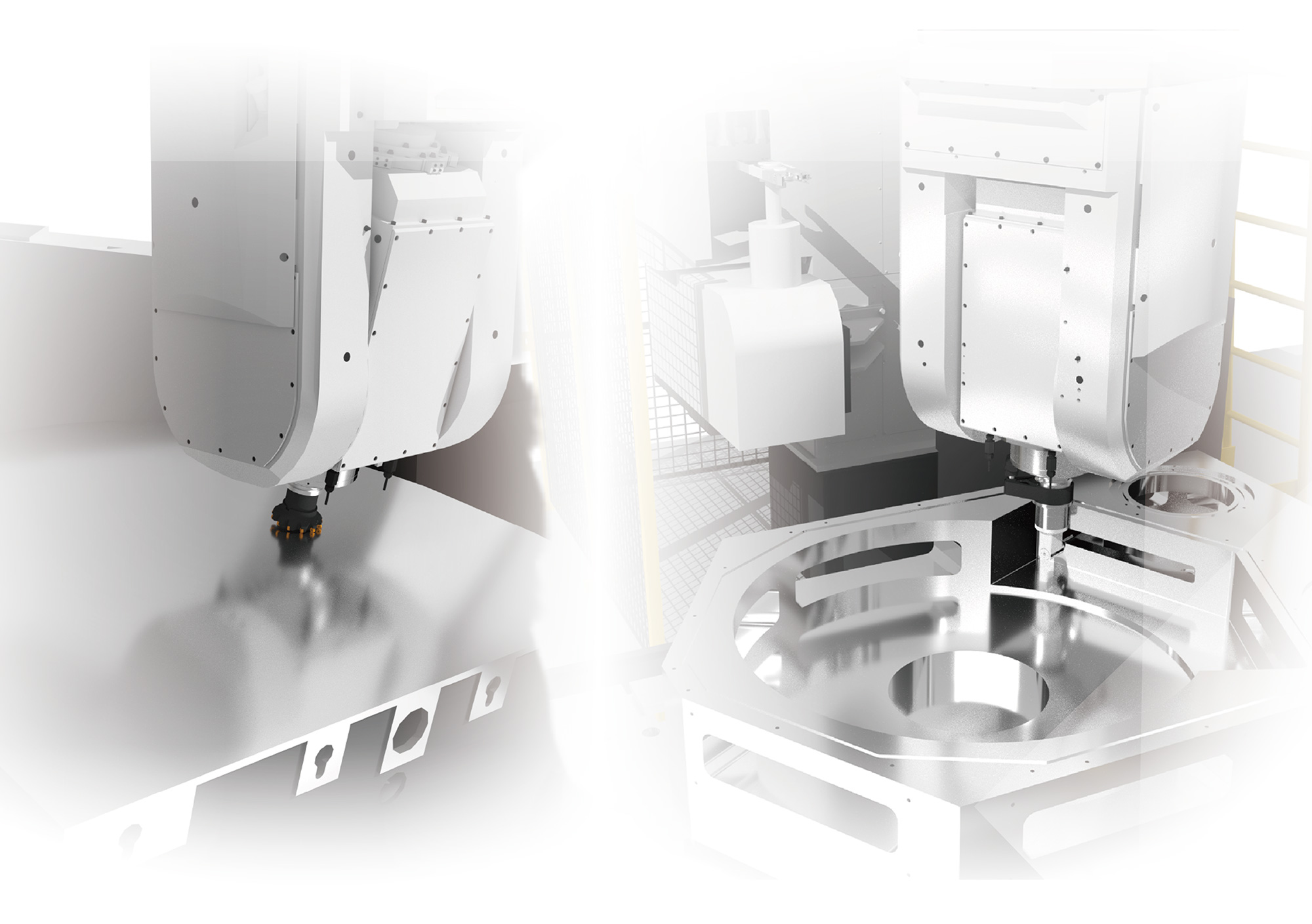

3Improved operation system that takes the burden off of operators.
Several difficulties come along when working with inclined surfaces. SNK has developed functions that help create programs with certain angles easier. Users, including those that use 5-face machining centers, can operate this machine easily.
Movie
