SNK | SHIN NIPPON KOKI CO.,LTD. > 5-Axis Machining Center     > HPS-A/B

HPS-A/BHorizontal type 5-axis machining center

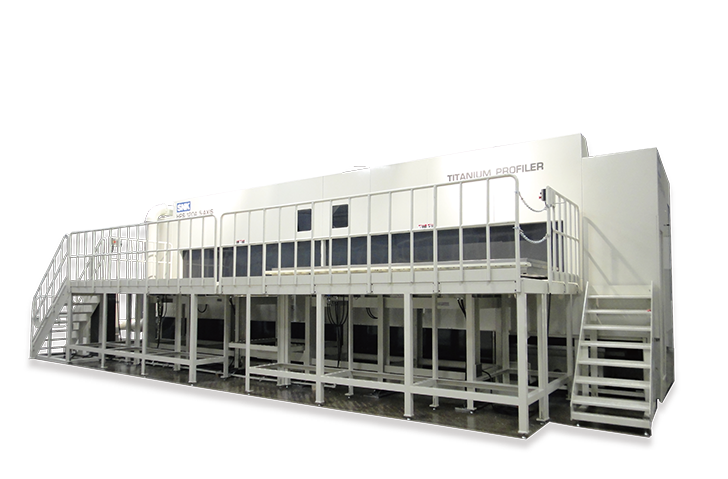

HPS-120A

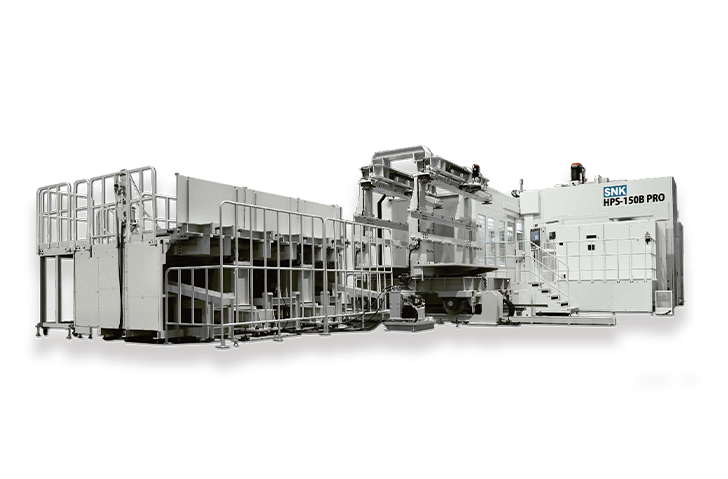

HPS-150B PRO
  • Automotive
  • Aerospace
  • General machining
  • Shipbuilding
  • Heavy electric
  • Material
  • Semiconductor
  • Specialized machines

Horizontal profiler with imposing chip emission capabilities.

HPS is a horizontal profiler aimed for high efficiency and high precision machining of aviation workpieces. HPS is able to offer a good work environment thanks to its tilting table, allowing setup work in a horizontal plane and machining in a vertical plane. SNK offers, HPS-A focused on machining titanium or other hard-to-cut materials, and HPS-B focused on fast machining of aluminum workpieces.

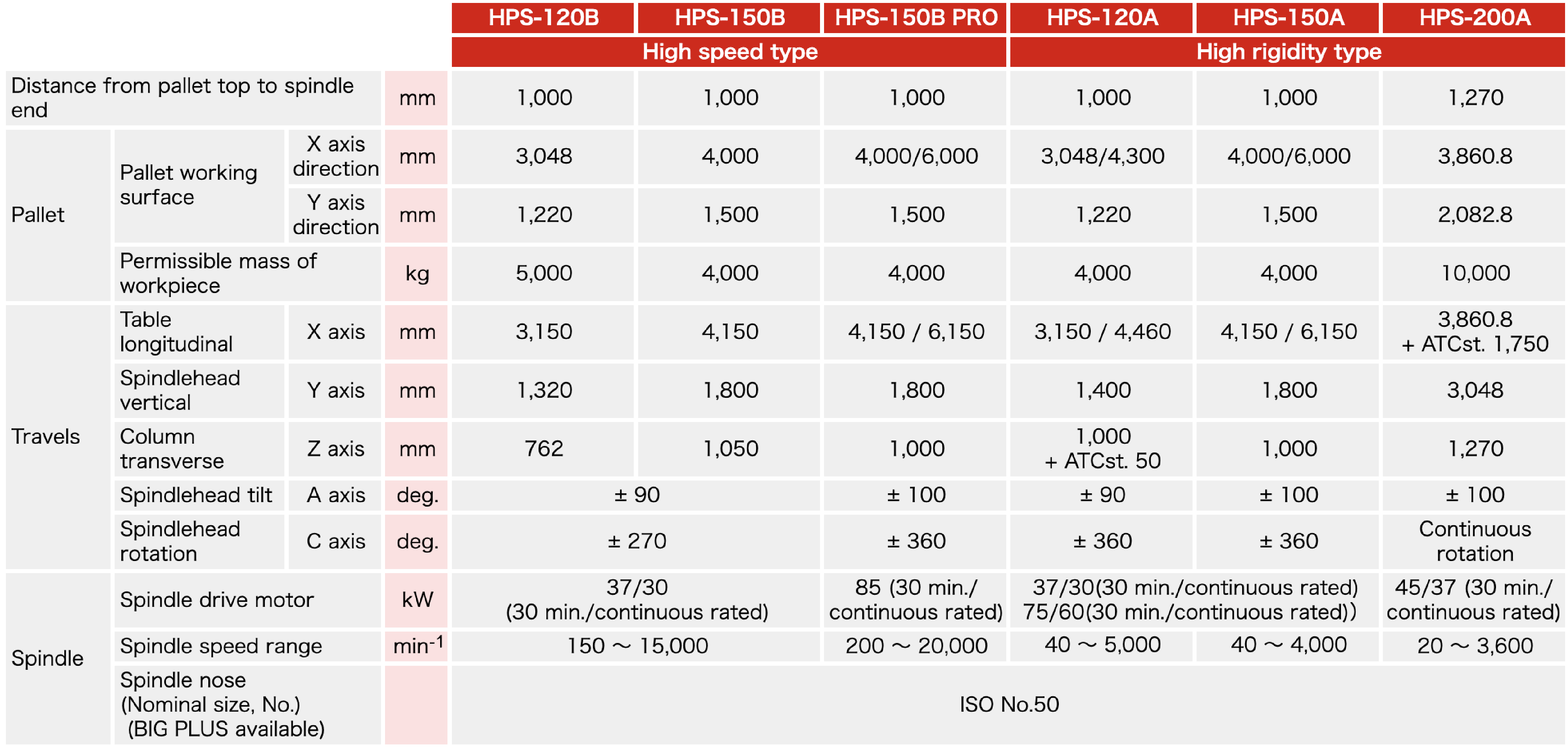

Main specifications

Features

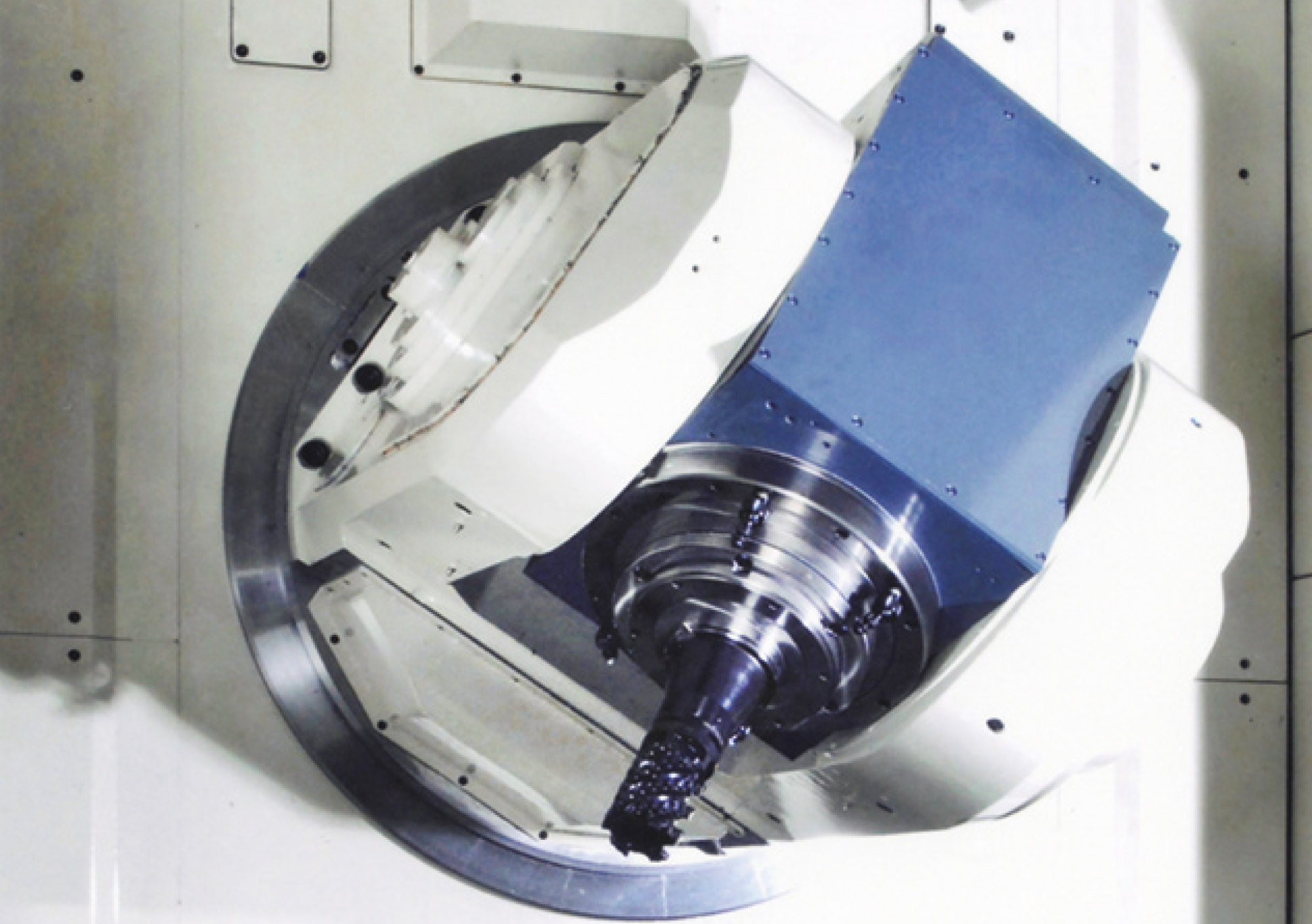

1The compact spindle head can rotate ±90°in its A-axis and ±270°in its C-axis.

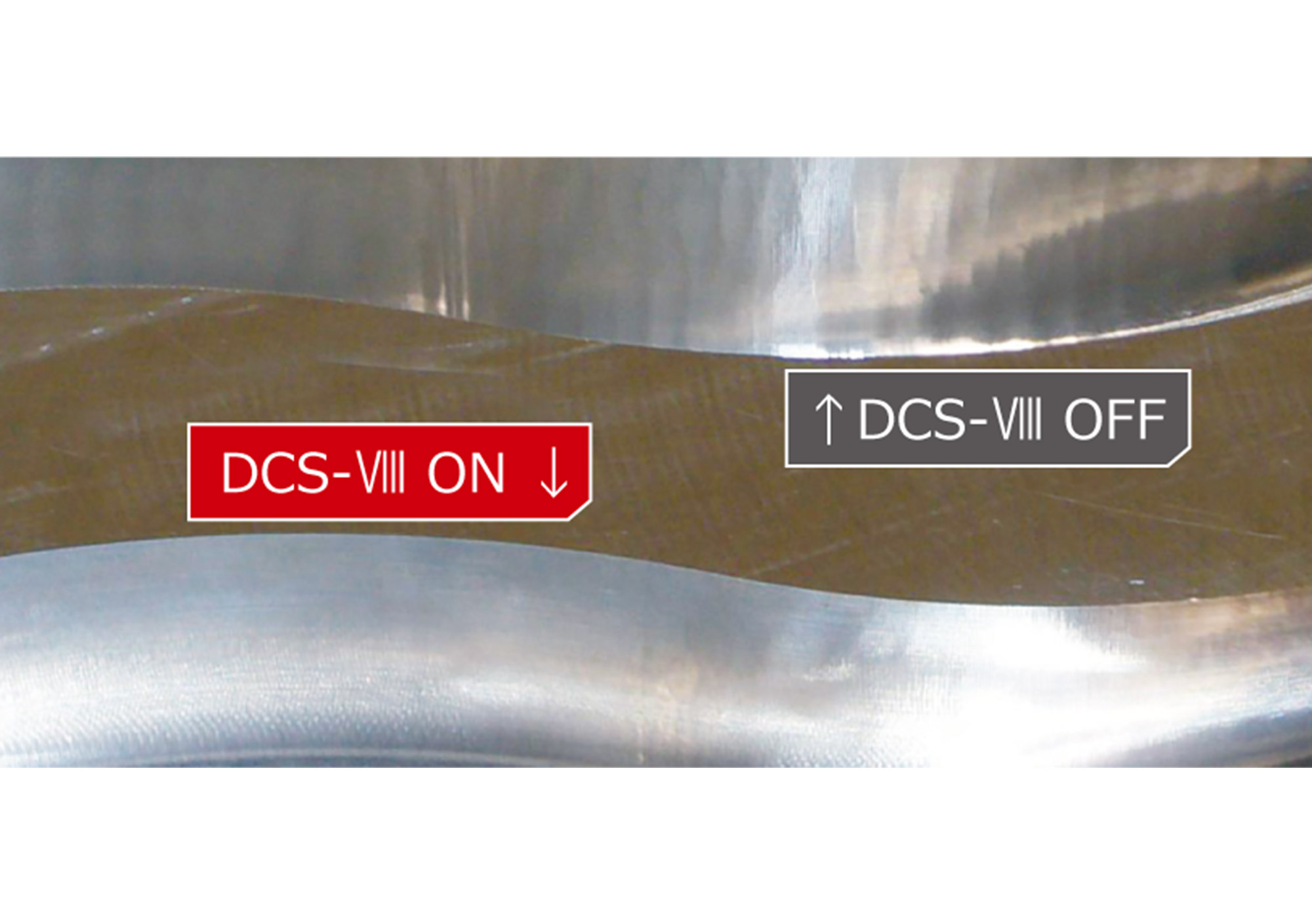

2DCS aeroedition can be installed as well for even higher quality surfaces.

Movie
